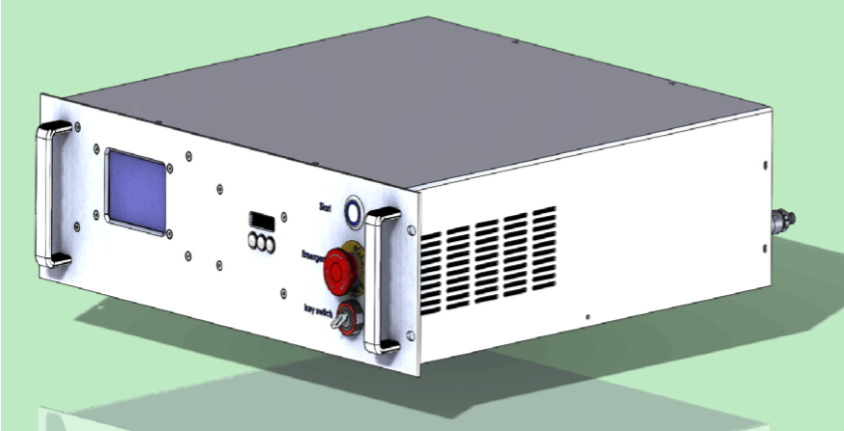

直接半導體激光器系統(3u)
產品描述：
激光功率控制電壓高速跟蹤響應，TTL出光信號，兼容所有激光加工軟件的激光電源。
注：型號有多款配置不一樣而外形有不同，圖片以實物為準。

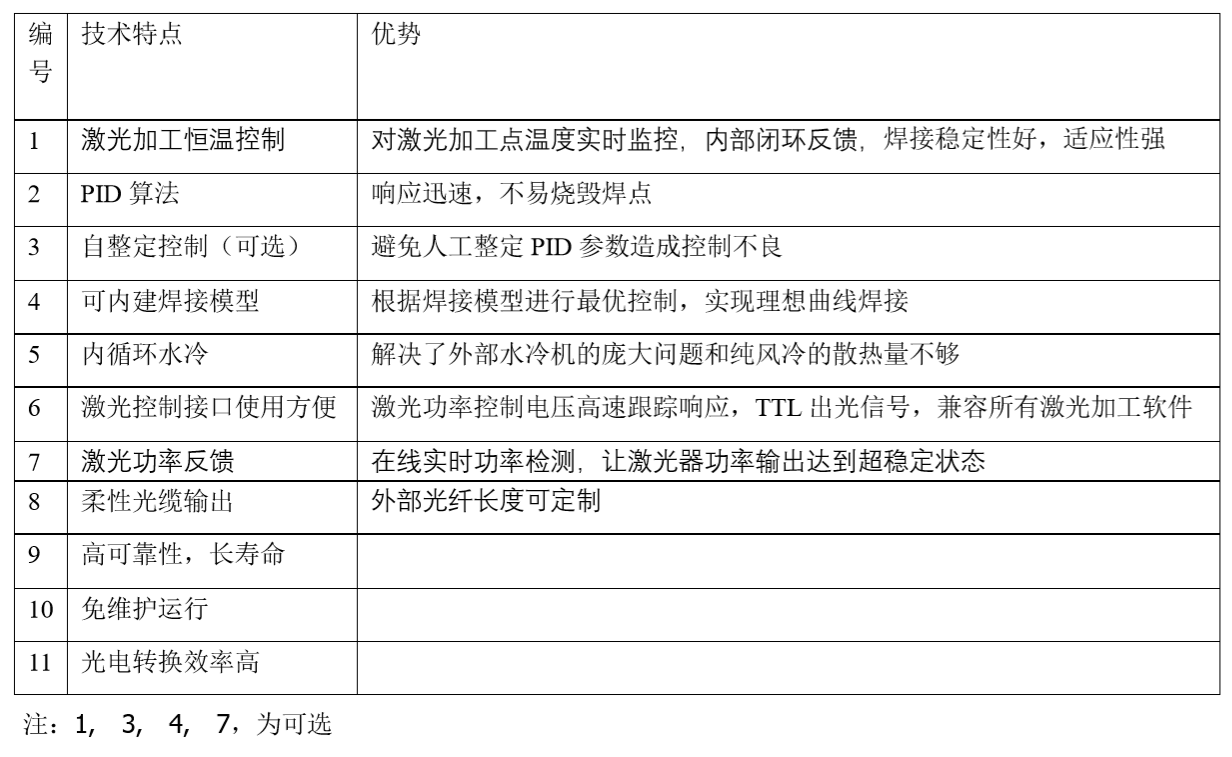

主要特點：
主要應用：
? 激光錫焊
? 塑料焊接
? 高功率半導體激光器泵浦源。
? 激光淬火表面熱處理、激光熔覆
? 金屬薄板焊接
? 3D 打印
? 激光研究

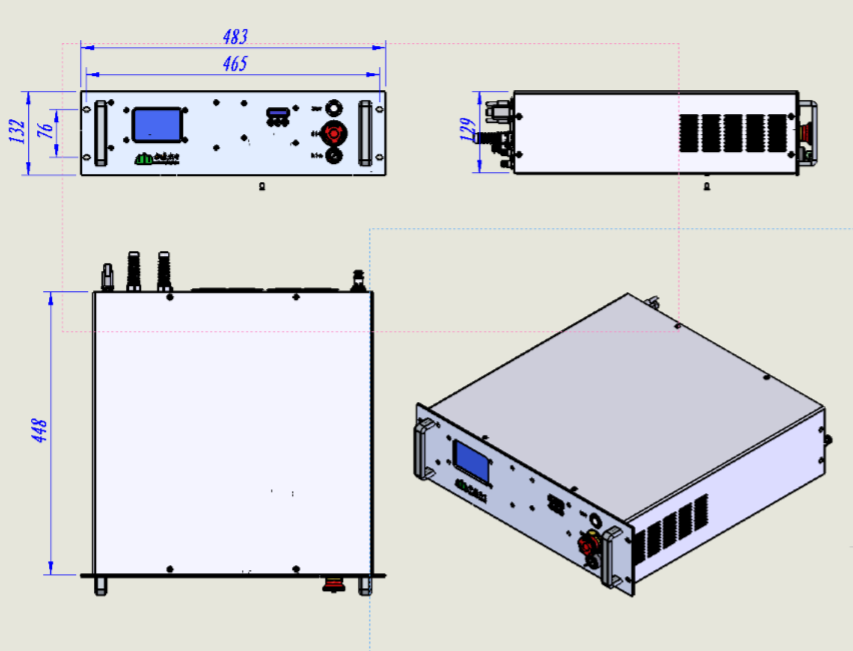

產品外形尺寸規格：

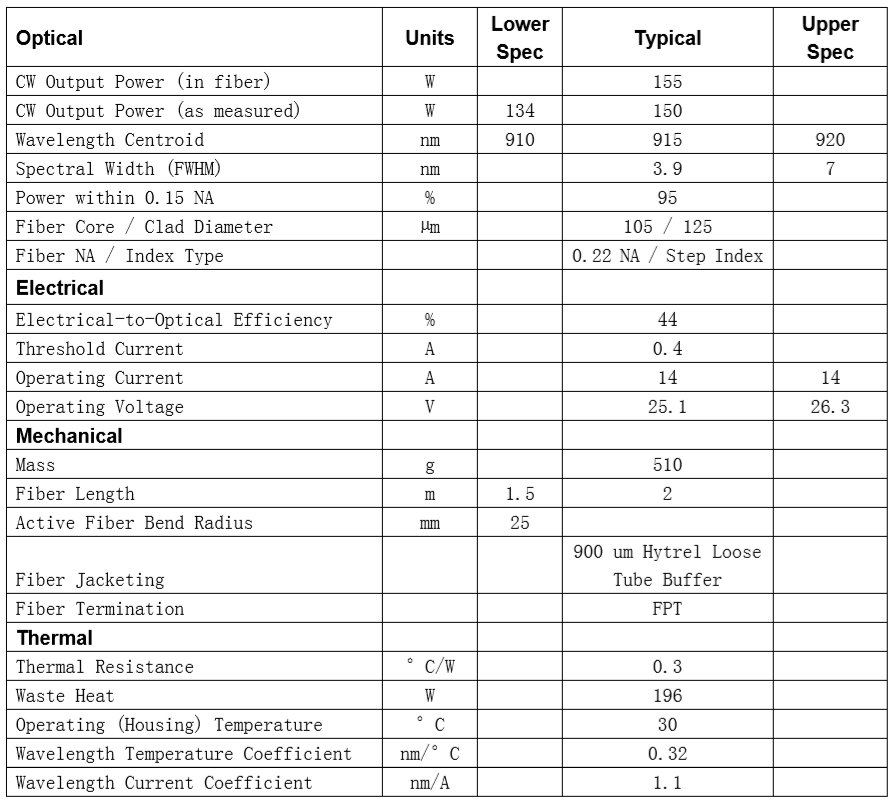

技術參數（泵浦源）
Notes
1. Production specification shown are for beginning of life performance. End of life operating current (Iop) is 120% beginning of life Iop.
2. A non-condensing environment is required for operation and storage. Storage conditions are from -20 to +70 oC with relative humidity between 5 to 85
3. Operating temperature defined by the package housing. Acceptable operating range is 20 - 35C, but performance may vary 4. Export Control Classification Number (ECCN) as defined by the Export Administration Regulations (EAR).

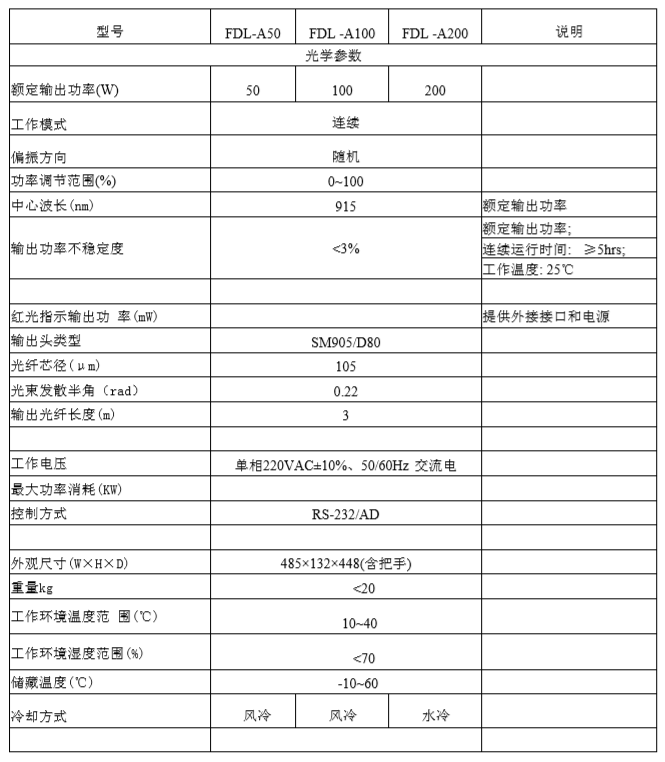

系統技術參數
